  • Diaphragm electrolytic cell for ionized water

  • Diaphragm electrolytic cell for ionized water

Diaphragm electrolytic cell for ionized water

Ionized Water is produced through electrolysis – where electric current is passed through the water to separate water into oxygen and hydrogen gas (or positive and negative ions).The core component for producing ionized water by electrolysis is an electrolyzer, which generally uses the method of diaphragm electrolysis to separate acid and alkali water. Alkaline ionized water contains much inorganic mineral and becomes drinking water. The acidic ionized water has sterilization effect and can be used for healing skin problems.


Product Description


The core component for producing ionized water by electrolysis is an electrolyzer, which generally uses the method of diaphragm electrolysis to separate acid and alkali water. Alkaline ionized water contains much inorganic mineral and becomes drinking water.

The acidic ionized water has sterilization effect and can be used for healing skin problems and others.

Technology Comparison


Parameters:

1Liquid flow:1-4L/min

2Voltage:DC1-12V

3current0-4A

4ORPMV):0-400MV

5PHAcid water2.5-7),Alkaline water7-11

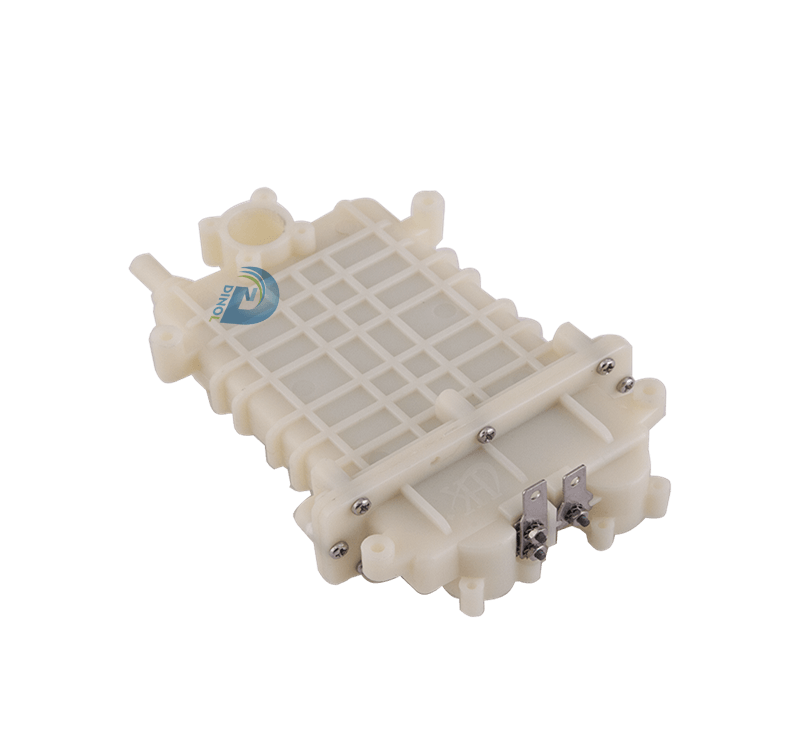

Constituent Part

The electrolyzer cell is mainly composed of the following components:

1、ElectrodeTitanium anode and cathod separated by the diaphragm.

2、Cell:ABS/UPVC

3、Diaphragm:Ionic membrane

4、Accessories: Titanium boltO-ring etc.


Diaphragm electrolytic cell for ionized water,Alkaline electrolyzed water cell5f7005c49ad34.png

Application

1. Production of electrolyzed alkaline water

2. generator of acidic electrolyzed water

3. Ionized water machine

4. Hypochlorous acid water disinfectant generator

5. Hydrogen and oxygen generator.etc

Specifications

Characteristics

1. the high-grade titanium-plated platinum coating of the electrode plates with long lasting life could work in reverse.

2. Overly modules of freely combined.

3. a rock-bottom price from factory.

4. Supply Agreement Contract Samples.
