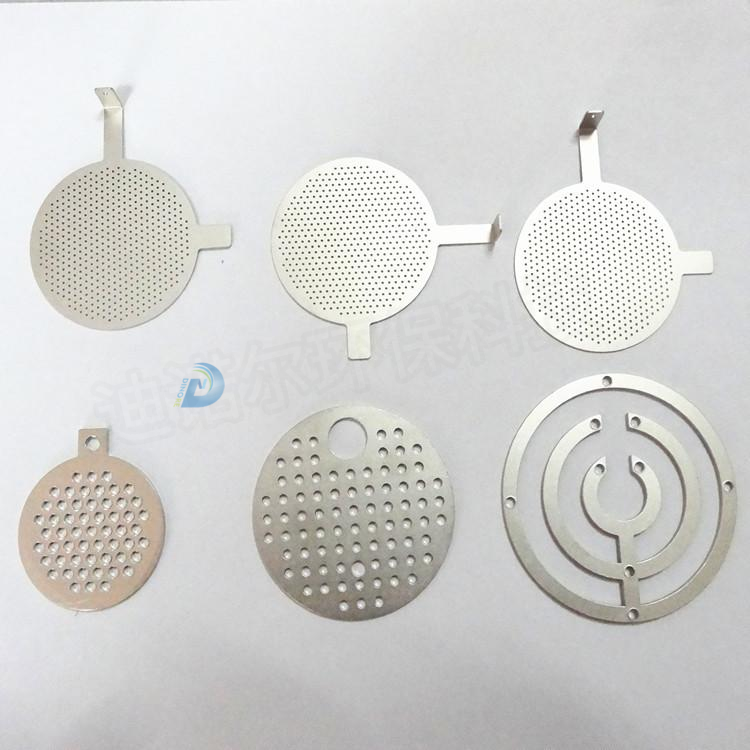

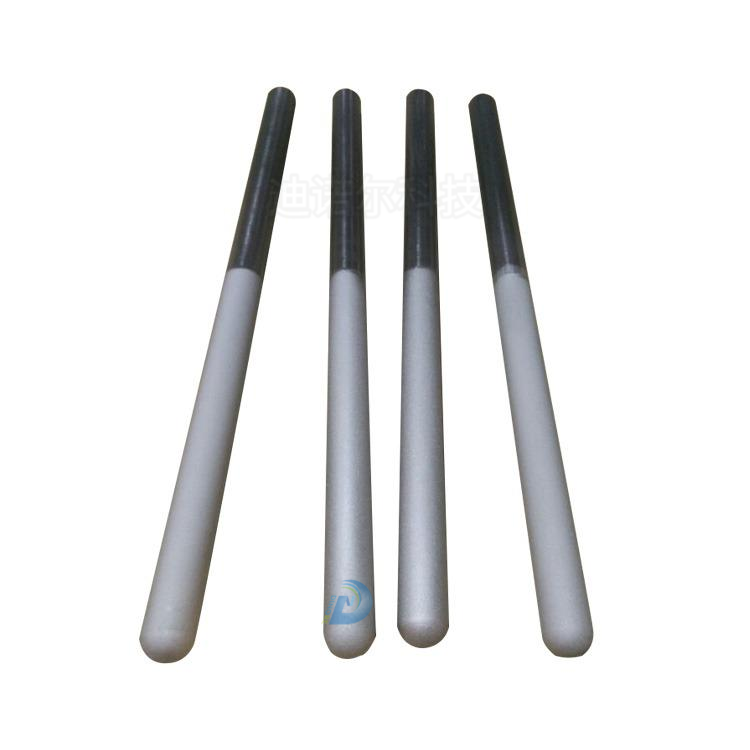

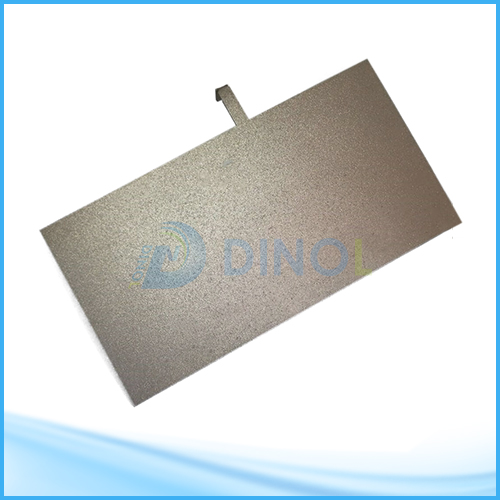

Platinized Titanium Mesh

Titanium/Niobium-based platinum plated anode process, using electroplating or brush plating process,the appearance is bright silver white, with the characteristics of large anode discharge current density and long service life.

Product Description

Titanium based platinum plated anode process, using electroplating or brush plating process,the appearance is bright silver white, with the characteristics of large anode discharge current density and long service life.

Platinized titanium anode production process:

1.Titanium-based platinum plating/Niobium-based platinum plating

The titanium/niobium-based platinum plating process deposits a layer of pure platinum on the titanium/niobium surface, the structure of the platinum coating is dense.

2.Titanium-based platinum brush plating/Niobium-based platinum brush plating

The titanium-based platinum brush coating process coats a layer of platinum-containing compound on the titanium base. After high temperature sintering, a layer of platinum-containing oxide is formed on the surface of titanium, which has a loose structure.

 Platinum plated anode is a good choice for noble metal plating anodes and other high oxygen evolution over potential environment.

General Specifications of platinum plated anode produced by DINOL:

Substrate

Based material:Titanium

Based material:Niobium

Shape

Plate/tube/mesh/Rod/wire/according to drawings

Plate/tube/mesh/Rod/wire/according to drawings

Production Process:

platinum plating/platinum brush plating

platinum plating/platinum brush plating

Platinum coating thickness

0.3-15μm

0.3-20μm

Working electric currrent

≤10000A/M2

≤10000A/M2

Platinum Plated Titanium Anode

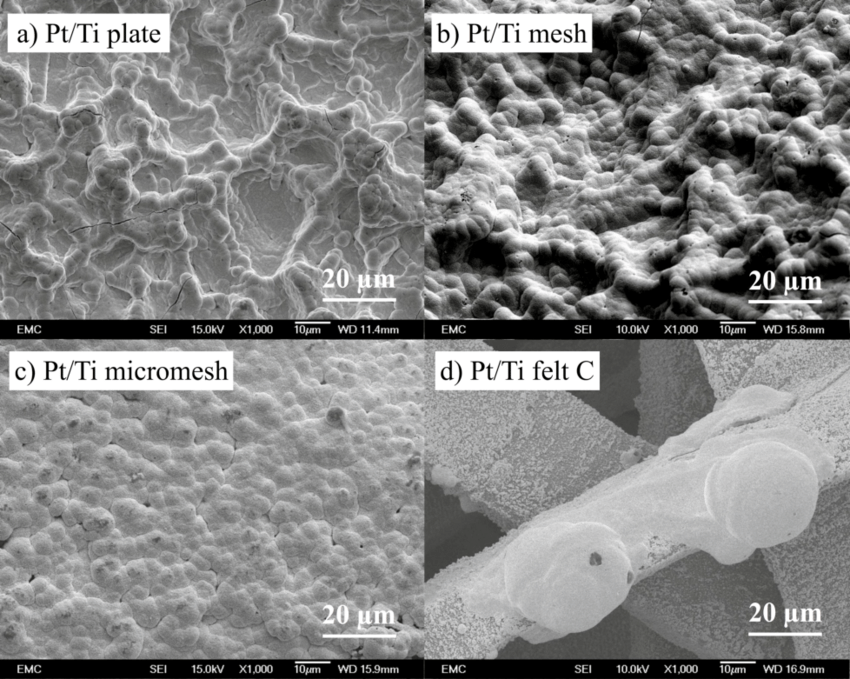

SEM images of the platinum coating morphology of various Pt/Ti electrodes

Technology Comparison

Compared with other soluble electrodes and lead anodes, it has the following advantages:

1. Flexible, can meet a variety of needs;

2. It can produce heterogeneous anodes with complex shapes;

3. Energy saving;

4. Light weight (especially mesh anode);

5. In the case of high current density, it can also guarantee a long service life;

6. The titanium structure is firm and does not deform;

7. The substrate can be reused, saving costs;

8. The precipitation is uniform and the quality of the finished product is high.

Application

 Platinum plated anode application:

1.Electrolysis electrode of water:HHO,Electrolytic NaCl,Electrolysis ionized water,disinfectant generator etc.

2.Electroplating auxiliary anode:Nickel/Chromium/Gold /Copper plating

3.Electrodeposition of non-ferrous metals

4.Organic electrolytic synthesis

5.Cathodic protection auxiliary anode

6.Electro-dialysis with reversal of polarity

7.Other industrial application
