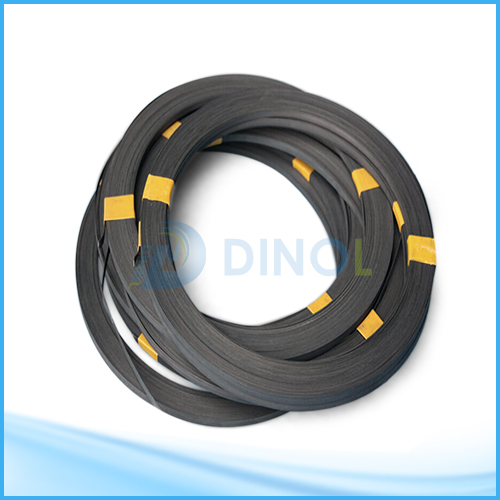

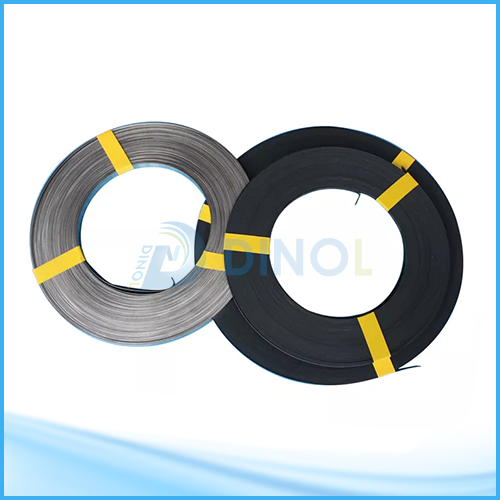

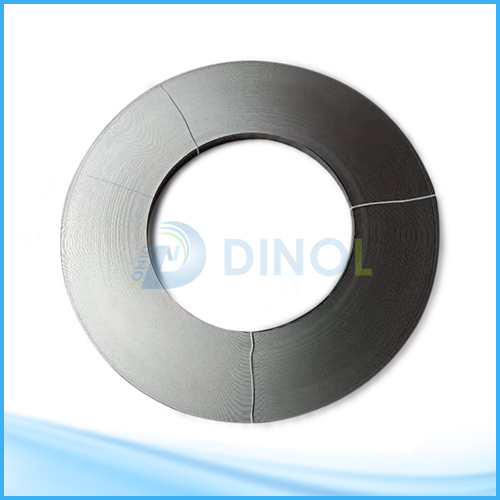

MMO Titanium Anode Ribbon/titanium conductive tape

The MMO titanium anode belt is an insoluble anode (DSA anode). The surface of the titanium belt is coated and sintered with a layer of noble metal oxide with high electrocatalytic activity by the traditional thermal decomposition method

Product Description

It is usually used on the bottom of ground storage tanks and reinforced concrete The structure of cathodic protection is generally laid perpendicular to the titanium conductive tape as an auxiliary anode for impressed current cathodic protection. The intersections are connected by spot welding with a special welder to form a grid-like grid, and the energizing point is connected by an anode special joint connection. It has become a more suitable auxiliary anode material for the mesh anode cathodic protection system.

Technology Comparison

Related parameters

Coatingtitanium substrate
specificationsstandard length
design life
Iridium-tantalum/ruthenium-iridium mixed oxide (MMO coating)
TA1\TA2

6.35mm×thickness 0.635mm

12.7mm ×thickness 0.9mm

100m/volume 152m/volume 20year—40year



Application

Application fields of MMO anode tape in impressed current cathodic protection :

① Anti-corrosion on the inner wall of the pipeline

② underground storage tanks, ground storage tanks, water storage tanks

③ condensate tank, heat exchanger, water treatment equipment

④ Anti-corrosion of ships, roads, bridges, building steel bodies, etc.

⑤ continuous horizontal ground bed, discontinuous horizontal ground bed, shallow buried vertical ground bed
