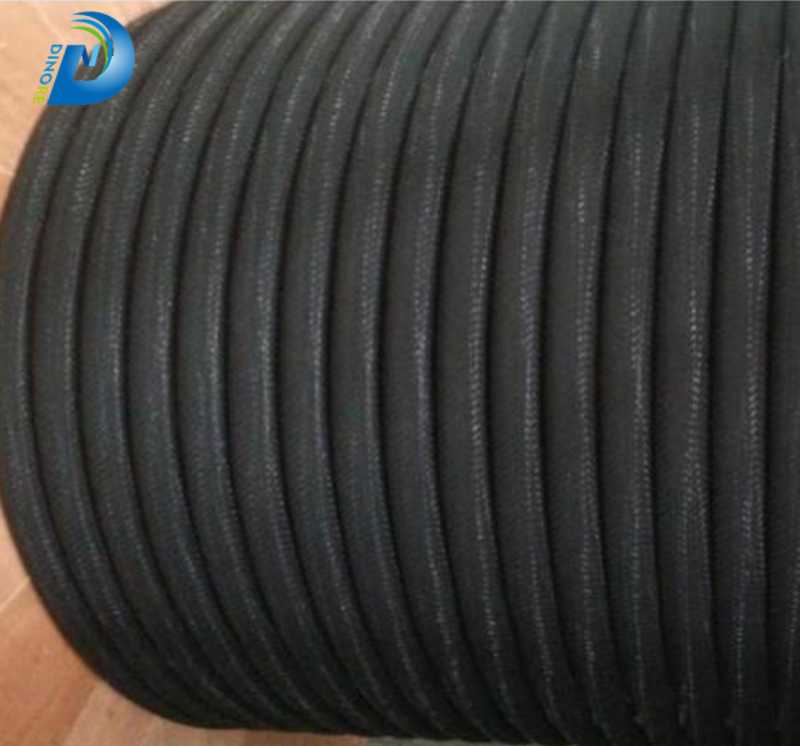

Flexible (cable type) anode based on MMO/Ti coating technology

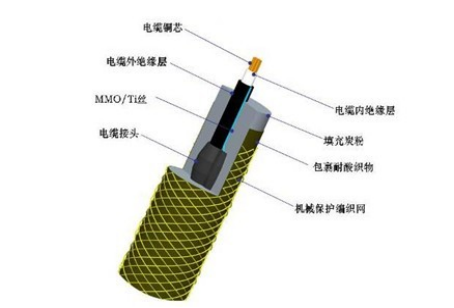

The flexible anode is a titanium-based mixed metal oxide (MMO/Ti) linear anode coated with backfilled carbon powder and packaged in a soft sheath. The method of connecting and sealing the power cable with the MMO/Ti anode wire at a certain distance achieves the same purpose of cable release and transmission. The cable only plays the role of transmitting current, and the protective electric field is released through the MMO/Ti anode wire to form an auxiliary anode for composite cathodic protection.


Product Description

The flexible anode has the following characteristics:

1. Lower contact resistance between MMO/Ti wire and cable

2. Easy to use and install

3. Excellent corrosion resistance and aging resistance of the sealing material of the connection point (node)

4. High current output characteristics can be designed

5. Reliable joint connection and quality control

Flexible (cable type) anode based on MMO/Ti coating technology

Technology Comparison

Product numberELTA-15(MMO Coating φ1.5mm titanium wire anode)ELTA-30(MMO Coating φ3.0mm anode wire)
combined flexible anode body outer diameter3838
MMO/Ti anode core diameter1.5mm3.0mm
输出电流300~1100mAm300~1100mAm
design life25~40years,can be designed according to user requirements25~40years,can be designed according to user requirements
cable1×10mm2  XLPE/PVC1×10mm2   XLPE/PVC
carbon content of carbon powder≥99.8%≥99.8%
contact resistance between MMO/Ti wire and cable≤0.0009Ω≤0.0009Ω
anode weight1.5Kg/m1.5Kg/m
anode per roll Length600m、1500m(freely cut length)600m、1500m(freely cut length)
