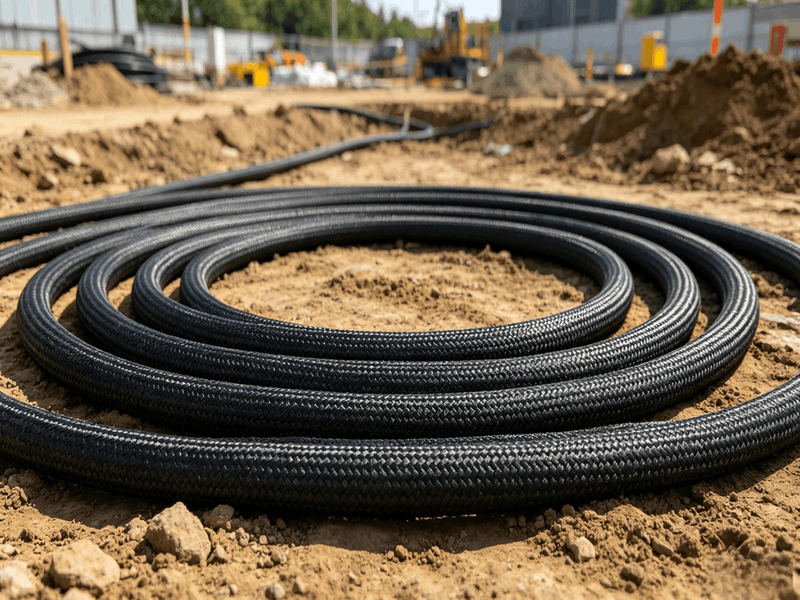

When selecting a Polymeric Conductive Flexible Anode, do not focus solely on price. The following five parameters directly determine protection effectiveness and service life.
1. Is the Conductivity Adequate?
The conductivity of a polymeric conductive anode is determined by the type, content, and dispersion uniformity of its carbon filler. A high-quality product must have a volume resistivity ≤ 0.05 Ω·cm. Higher resistivity leads to significant voltage drop over long lengths, preventing the distal end from delivering sufficient current.
Recommendation: Request a resistivity test report (ASTM D991 standard) from your supplier.
2. What is the Minimum Bending Radius?
Tank edges, pipe elbows, and confined spaces require the anode to bend. While standard products may have a minimum bending radius of 300 mm, high-quality anodes achieve 150 mm or less. A smaller radius means greater installation flexibility and lower risk of damage.
3. Is the Tensile Strength Sufficient?
During installation, the anode must be pulled into trenches or casings. Insufficient tensile strength can rupture the internal conductive network. Even if the outer sheath looks intact, the damaged section will not function properly. A high-quality flexible anode should have a tensile strength ≥ 800 N.
4. Is it Protected Against Short Circuits?
This is a core advantage of polymeric conductive anodes over metallic (e.g., titanium) flexible anodes. In a high-quality product, compression increases the distance between conductive particles, automatically increasing resistance. Even if tightly pressed against a pipe, it will not create a low-resistance short circuit.
Test Method: Press a section of the flexible anode firmly against a steel pipe and measure the resistance between them. A qualified product will show resistance in the megohm range, not zero or a few ohms.
5. What is the Stated Service Life?
The design life of a high-quality Polymeric Conductive Flexible Anode is 20-40 years. Wear rate tests show an annual thickness loss of less than 0.5 mm. Request accelerated aging test data or operational records from similar long-term projects from the supplier.
Quick Comparison: Polymeric Conductive vs. Other Anode Types
| Feature | Polymeric Conductive Type | Titanium Ribbon Type (Metallic) | HSCI (Point) |
|---|---|---|---|
| Flexibility | Excellent | Fair (prone to breakage) | None |
| Short-Circuit Protection | Self-limiting current | Requires strict isolation | Not applicable |
| Unit Cost | Low-Medium | High | Medium |
| Installation Labor | Low | Medium | High (needs deep wells/pits) |
| Current Uniformity | Continuous & uniform | Continuous & uniform | Point source / concentrated |
Procurement Checklist:
Volume Resistivity ≤ 0.05 Ω·cm
Minimum Bending Radius ≤ 150 mm
Tensile Strength ≥ 800 N
No short circuit upon pipe contact
Design Life ≥ 20 years
Complete test reports provided
Request a Quote: Provide your required length, application details, and required protection current. We will deliver a detailed configuration plan and price within 24 hours.
