MMO Titanium Wire Anode Wire

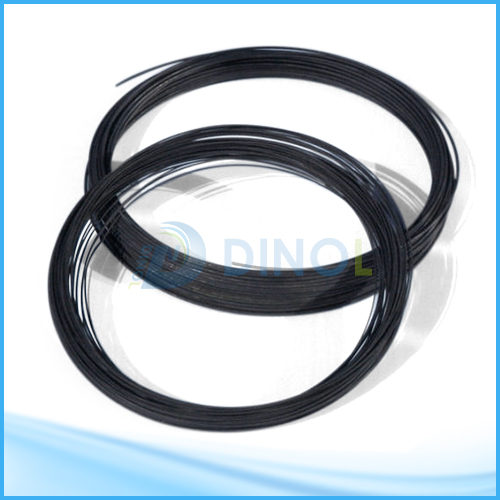

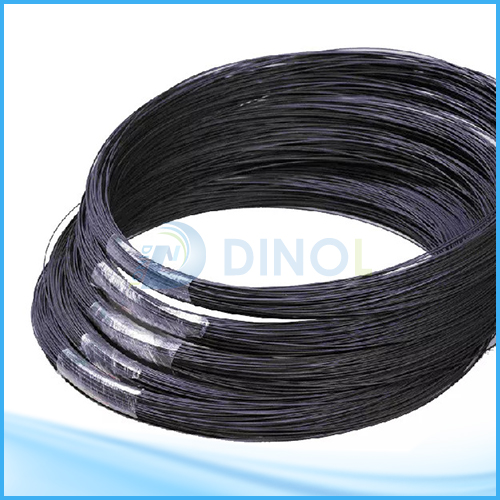

MMO anode wire is a high grade titanium wire with a mixed metal oxide (MMO) catalyst coating most commonly used in anode assembly configurations.

Product Description

MMO Anode Wire

MMO anode wire is a high grade titanium wire with a mixed metal oxide (MMO) catalyst coating most commonly used in anode assembly configurations. Typical applications for this type of anode include protection of tank bottoms, piping systems, water treatment equipment, other underground structures, etc.

Advantages of anode wire

1. Long anode wire life due to the mixed oxide coating

2. Simple installation and operation.

3. Controllable wire length for better current distribution


Technology Comparison

Titanium Anode Wire parameter

Electrolytewithstand current density ( A/m 2)life expectancy(year)
carbon filler5030
calcined coke10030
fresh water10030
silt100 -30030
sea water60030

MMO Titanium Wire Anode specifications

Diameter (mm) length can be customizedCoating typeoutput current (mA/m)design life(year)
1.5

ruthenium iridium, iridium tantalum, platinum plating

32820—45
2

ruthenium iridium, iridium tantalum, platinum plating

50020—45
3

ruthenium iridium, iridium tantalum, platinum plating

65620—45



Application

Titanium wire anode application areas:

1. Used as a cathodic protection auxiliary anode alone, or as a cylindrical anode, flexible anode mmo electrocatalytic electrode;

2. It can be applied to continuous horizontal ground beds, discontinuous vertical ground surfaces, and storage tanks. Cathodic protection of equipment, cable protection, boiling water container, etc.;

3. It can also be applied to industrial electroplating auxiliary anode and electrochemical water treatment electrocatalytic oxidation electrode.
